Quick Answer:
Both the expansion valve and orifice tube drop refrigerant pressure to create cold — but an expansion valve is a variable precision device (most European, Japanese, and modern vehicles) while an orifice tube is a simple fixed restriction (common in GM, Ford, and Chrysler vehicles). They are not interchangeable. Your vehicle uses one or the other, determined by whether it has a receiver-drier (expansion valve) or accumulator (orifice tube).
Every automotive AC system needs a way to drop the refrigerant’s pressure before it enters the evaporator. Without this pressure drop, the refrigerant would not get cold enough to absorb heat from your cabin air. Two different devices handle this job: the expansion valve and the orifice tube.
Both accomplish the same basic goal, but they work differently, are used in different vehicles, and fail in different ways. This guide explains how each one works, how to tell which your vehicle uses, and what happens when they go bad.
The Role of the Metering Device
Before diving into the differences, it helps to understand what the metering device does in the AC system.
After the condenser converts the refrigerant from a high-pressure gas into a high-pressure liquid, that liquid needs to be turned into a cold, low-pressure mist before entering the evaporator. The metering device — either an expansion valve or an orifice tube — is what makes this happen.
By forcing the liquid refrigerant through a small restriction, the device causes a rapid drop in pressure. This pressure drop causes the refrigerant’s temperature to plummet, making it cold enough to absorb heat from the cabin air as it passes through the evaporator.
How the Expansion Valve Works
The thermal expansion valve (TXV or TEV) is a variable metering device. It adjusts the flow of refrigerant into the evaporator based on the system’s actual cooling demand.
Key Features of the Expansion Valve
- Variable flow rate: The valve opens and closes to regulate how much refrigerant enters the evaporator. When cooling demand is high, it opens wider. When the evaporator is cold enough, it restricts flow.
- Sensing bulb: A small bulb attached to the evaporator outlet monitors the refrigerant temperature leaving the evaporator. This information feeds back to the valve to adjust flow in real time.
- Precise superheat control: By constantly adjusting, the TXV maintains proper superheat at the evaporator outlet. This means the evaporator operates at peak efficiency across a range of conditions.
- Location: Typically mounted at the evaporator inlet, either on the firewall or inside the HVAC housing.
The expansion valve is the more sophisticated of the two devices. It provides better cooling performance across varying conditions, which is why it is commonly used in vehicles that prioritize climate control performance.
Vehicles That Typically Use Expansion Valves
- Most European vehicles (BMW, Mercedes, Audi, Volkswagen)
- Many Japanese vehicles (Toyota, Honda, Nissan)
- Higher-end and luxury vehicles
- Many newer vehicles across all manufacturers
How the Orifice Tube Works
The orifice tube (also called a fixed orifice tube or FOT) is a much simpler device. It is a small tube with a fixed-size restriction — essentially a calibrated hole that the refrigerant must pass through.
Key Features of the Orifice Tube
- Fixed flow rate: Unlike the expansion valve, the orifice tube does not adjust. It provides a constant restriction regardless of conditions.
- No moving parts: The orifice tube is a completely passive device. There is nothing to wear out mechanically.
- System relies on compressor cycling: Since the orifice tube cannot regulate flow, the system controls cooling by cycling the compressor on and off using a pressure switch or cycling clutch switch.
- Location: Typically located in the liquid line between the condenser and the evaporator, often at the inlet to the evaporator or in the high-pressure line.
- Paired with an accumulator: Orifice tube systems use an accumulator (on the low-pressure side) rather than a receiver drier to handle excess liquid refrigerant.
Vehicles That Typically Use Orifice Tubes
- Most General Motors vehicles (Chevrolet, GMC, Buick, Cadillac)
- Many Ford and Chrysler vehicles
- Many American-market trucks and SUVs
- Some economy vehicles where simplicity is prioritized
Key Differences at a Glance
| Feature | Expansion Valve | Orifice Tube |
| Flow regulation | Variable (adjusts in real time) | Fixed (constant restriction) |
| Moving parts | Yes (valve pin, diaphragm) | No |
| Paired with | Receiver drier | Accumulator |
| Cooling efficiency | Higher (adapts to demand) | Lower (relies on compressor cycling) |
| Location | Evaporator inlet / firewall | Liquid line (usually near evaporator) |
| Cost | $30 – $80 | $5 – $20 |
| Complexity | More complex | Very simple |
How to Tell Which System Your Vehicle Has
If you are not sure which metering device your vehicle uses, here are a few ways to figure it out.
Check the low-pressure side of the system. If your vehicle has a large canister on the suction line between the evaporator and the compressor, that is an accumulator — and your vehicle uses an orifice tube. If there is a canister on the high-pressure side (between the condenser and the expansion device), that is a receiver drier, and your vehicle uses an expansion valve.
Look at the evaporator inlet. If there is a small valve assembly with a sensing bulb attached to the evaporator outlet pipe, you have an expansion valve.
Check a parts catalog or repair manual. When in doubt, look up your specific vehicle. Parts catalogs will list either an expansion valve or an orifice tube for your application.
Symptoms of a Failing Expansion Valve
Because the expansion valve has moving parts, it can fail in several ways.
Stuck Closed or Under-Opening
When the valve sticks in a closed or partially closed position, not enough refrigerant reaches the evaporator.
- AC blows warmer than normal air.
- High-side pressure is higher than normal.
- Low-side pressure is lower than normal (the evaporator is starved).
- The evaporator may frost up in a small area near the inlet due to the restricted flow.
Stuck Open or Over-Opening
When the valve is stuck open or opens too far, too much refrigerant floods the evaporator.
- AC may initially cool well but then lose effectiveness.
- Low-side pressure is higher than normal.
- Liquid refrigerant may reach the compressor (called “floodback”), which can cause compressor damage over time.
- Frost may appear on the suction line or the compressor itself.
Erratic Operation
A valve with a failing sensing bulb or internal corrosion may open and close unpredictably, causing inconsistent cooling.
Symptoms of a Failing Orifice Tube
Since the orifice tube has no moving parts, it does not fail mechanically in the same way. However, it can still cause problems.
Clogged or Restricted
This is the most common orifice tube failure. Debris, metallic particles from a compressor failure, or degraded desiccant from the accumulator can clog the screen surrounding the orifice tube.
- AC blows warm or barely cool.
- High-side pressure is very high.
- Low-side pressure is very low.
- The orifice tube itself may show discoloration or contamination when removed.
Damaged or Broken
In rare cases, the orifice tube can crack or break, altering the size of the restriction.
- Inconsistent cooling performance.
- Unusual pressure readings.
Replacement: What to Know
Expansion Valve Replacement
Expansion valve replacement requires recovering the refrigerant, disconnecting the lines at the valve, and installing the new unit. On some vehicles, the valve is accessible on the firewall. On others, it is inside the HVAC housing and requires partial dashboard disassembly.
Always replace the receiver drier when replacing the expansion valve, and use new O-rings at all connections.
Orifice Tube Replacement
Orifice tube replacement is usually simpler and less expensive. The tube is a press-fit or snap-fit component located in the liquid line. A special removal tool makes extraction easier, especially if the tube has been in place for years and is corroded.
Always replace the accumulator when replacing the orifice tube, and flush the system if there is any contamination.
Cost Comparison
- Expansion valve (parts): $30 to $80.
- Orifice tube (parts): $5 to $20.
- Labor for either: $100 to $400, depending on accessibility.
- Always add: Receiver drier or accumulator, O-rings, and refrigerant recharge.
Frequently Asked Questions
Look at the AC system’s low-pressure side. If there is a large canister (accumulator) on the suction line between the evaporator and compressor, your vehicle uses an orifice tube. If there is a canister (receiver-drier) on the high-pressure side between the condenser and evaporator inlet, your vehicle uses an expansion valve.

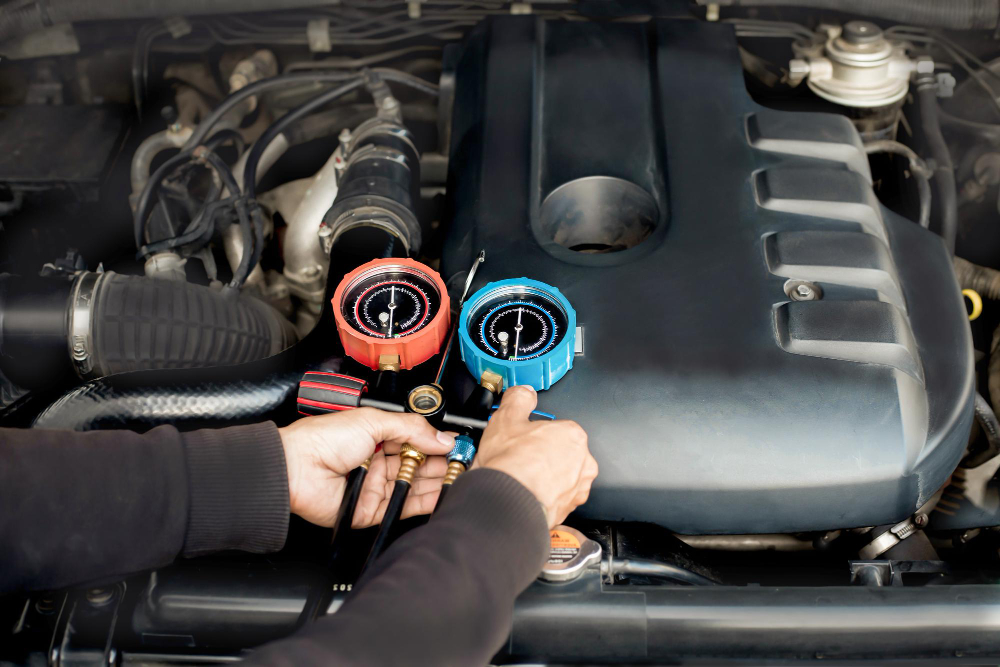

A stuck-closed valve causes warm air and low evaporator pressure (evaporator may frost). A stuck-open valve causes reduced cooling, high low-side pressure, and possible frost on the compressor or suction line from liquid refrigerant reaching the compressor. Manifold gauge readings are the definitive diagnostic tool.
A clogged orifice tube blocks refrigerant flow to the evaporator. Symptoms include warm air from vents, very high high-side pressure, and very low low-side pressure. Clogging usually results from debris in the system — commonly from a compressor failure or degraded desiccant from the accumulator.
The orifice tube itself is a simple replacement — it is a press-fit or snap-fit component in the liquid line accessible without dashboard disassembly. However, you must still recover the refrigerant first (requires professional equipment), and the system must be evacuated and recharged after replacement.
Yes, it is strongly recommended. Both are inexpensive parts, and replacing them preventatively during a compressor job avoids a repeat repair later. If the old compressor failed internally, the orifice tube or expansion valve screen is almost certainly contaminated with metallic debris.
The expansion valve provides more precise cooling because it adjusts refrigerant flow to match cooling demand. The orifice tube is simpler, less expensive, and has no moving parts to fail mechanically. Both work well in the systems they are designed for — the “better” device is whichever one your vehicle was engineered to use.
The expansion valve itself costs $30 to $80. Labor runs $100 to $400 depending on accessibility — some valves are on the firewall, others require partial dashboard removal. Add receiver-drier replacement ($15 to $50), new O-rings ($5 to $15), and refrigerant recharge ($50 to $150) for a complete repair.
Choose the Right Part for Your Vehicle
Whether your vehicle uses an expansion valve or an orifice tube, using the correct replacement is essential for proper AC operation. The wrong metering device will cause poor cooling, compressor damage, or both.
